Equipment Brief of?Wet Wipes Production line?
processparent rolls into support, automatic unwinding, folding, transport, sub synchronous amplitude, length of cutting, stacking, humidifying quantitative counting, synchronous delivering, automatic opening hole, automatic labeling, automatic packing, automatic folding, heat sealing, cutting products and finished product output pressure
Technical parameters of?Wet Wipes Production line:
1-1 Automatic Unwinding
| Suitable For Use | Spunlaced Nonwovens |
| Outer Diameter Of Mother Roll | 1200mm (Maximum) Width Of 180 – 220mm,
Paper Core Diameter??3 Inches |
| Rack Number | 12set |
| Tension Control | Automatic Detection |
| Roll Control | Variable Frequency Motor 1/Set |

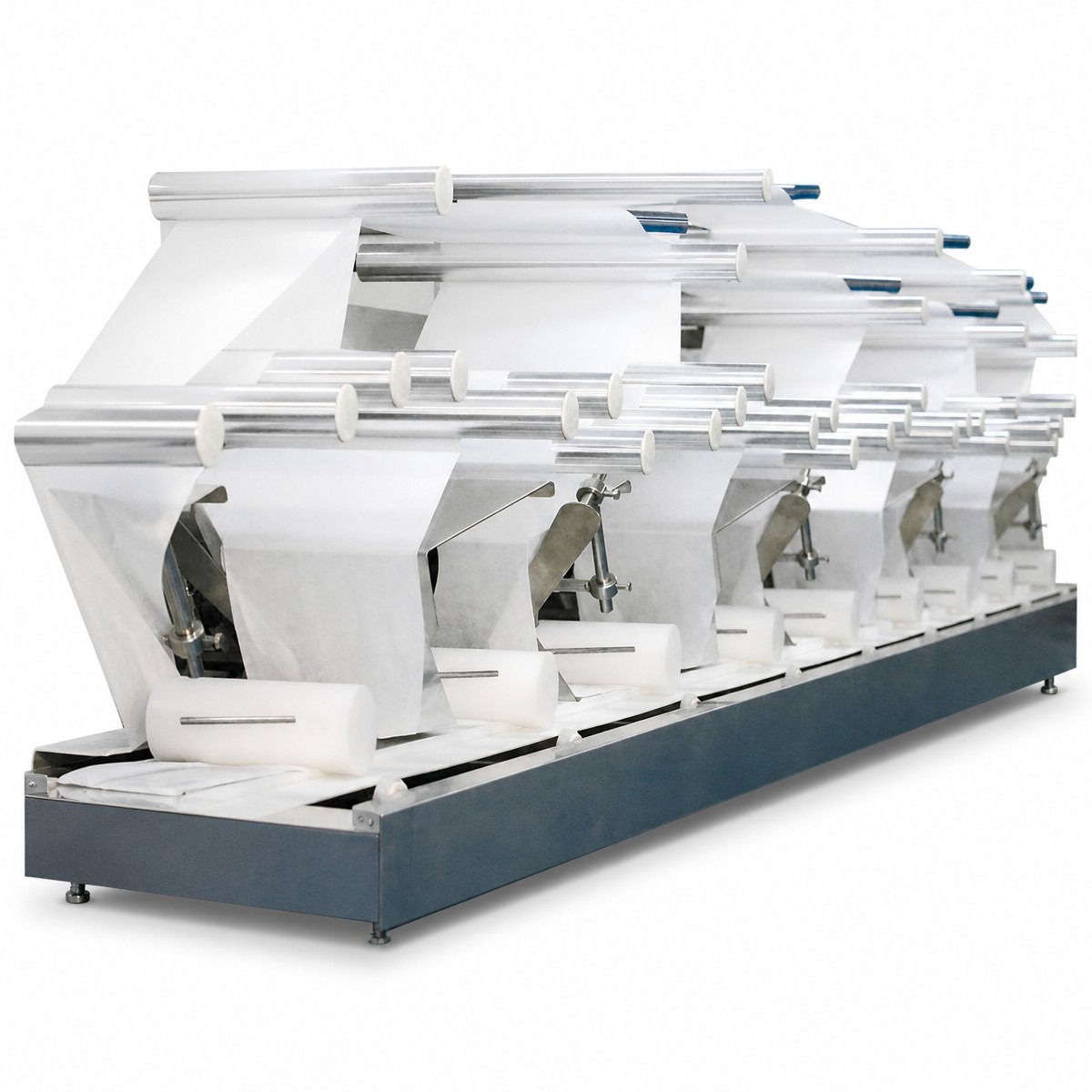

1-2 Folding Traction
| Folding Width | Adjustable Within The Range Of 90-120mm (Extra Wide) |
| Folding Style | Continuous Extraction /
Independent Extraction (Compatibility) |
| Folding Style | Adjustable |
| Traction Drive | Variable Frequency Motor Drive |
1-3 Quantitative Humidification
| Humidification Range: | Liquid Content?1-5?Times Adjustable |
| Liquid Range | 2.5-50L/Min |
| Humidification Accuracy | + 2%, Flowmeter Measurement |
1-4 Wipes Traction
| Traction Belt | PE White Belt, Food Grade |
| Body Material | Stainless Steel |
| Drive Motor | Frequency Conversion Motor |
1-5 Rotary Cutter
| Chip Length | 120-240mm, LCD Screen Set
(Super Special Custom) |
| Cutting Speed | 380 Knife /Min |
| Cutting Accuracy | + 0.5mm |
1-6 Automatic Stacking
| Drive Mode | Servo Motor Drive |
| Stacking Range | 1-10 Stack |
| Setting | LCD Settings |
1-7 Automatic Packaging Machine
| Film Roll Diameter | Maximum 360mm |
| Film WidthThe Widest | 450mm |
| Bag Length | 120-350mm LCD Screen Settings |
| Packing Width | 100-125mm (Adjustable) |
| Product Height | 30-100mm (Adjustable) |
| End Seal Type | Reciprocating End Seal |
| Speed Control | 10-70 Package /Min |
| Operating Interface | 10 LCD Screen |
| Reciprocating Control | Servo Motor 750W/1set |
| End Seal Control | Servo Motor 1000W/2set |
| End Protection | Overload Protection |
| Membrane Motor | Servo Motor 750W/1set |
| Feed Motor | Servo Motor 400W/1set |
| Hole Labeling: | Servo Motor 750W/2set |
| SUNX And Electric Eye Detection | (America LRD2100 Germany GSU 14B Optional) |
Optional Equipment
date Marking Machine
| Machine Size | L14200mm * W3195mm * H2030m |
| Power Supply | Demandac380v 50/60HZ 18KW |
| Air Supply Requirements | air Pressure 0.4 – 0.6Mpa
Gas Consumption Of 0.1 Cubic /Min |
| Weightabout | 10 Tons |
